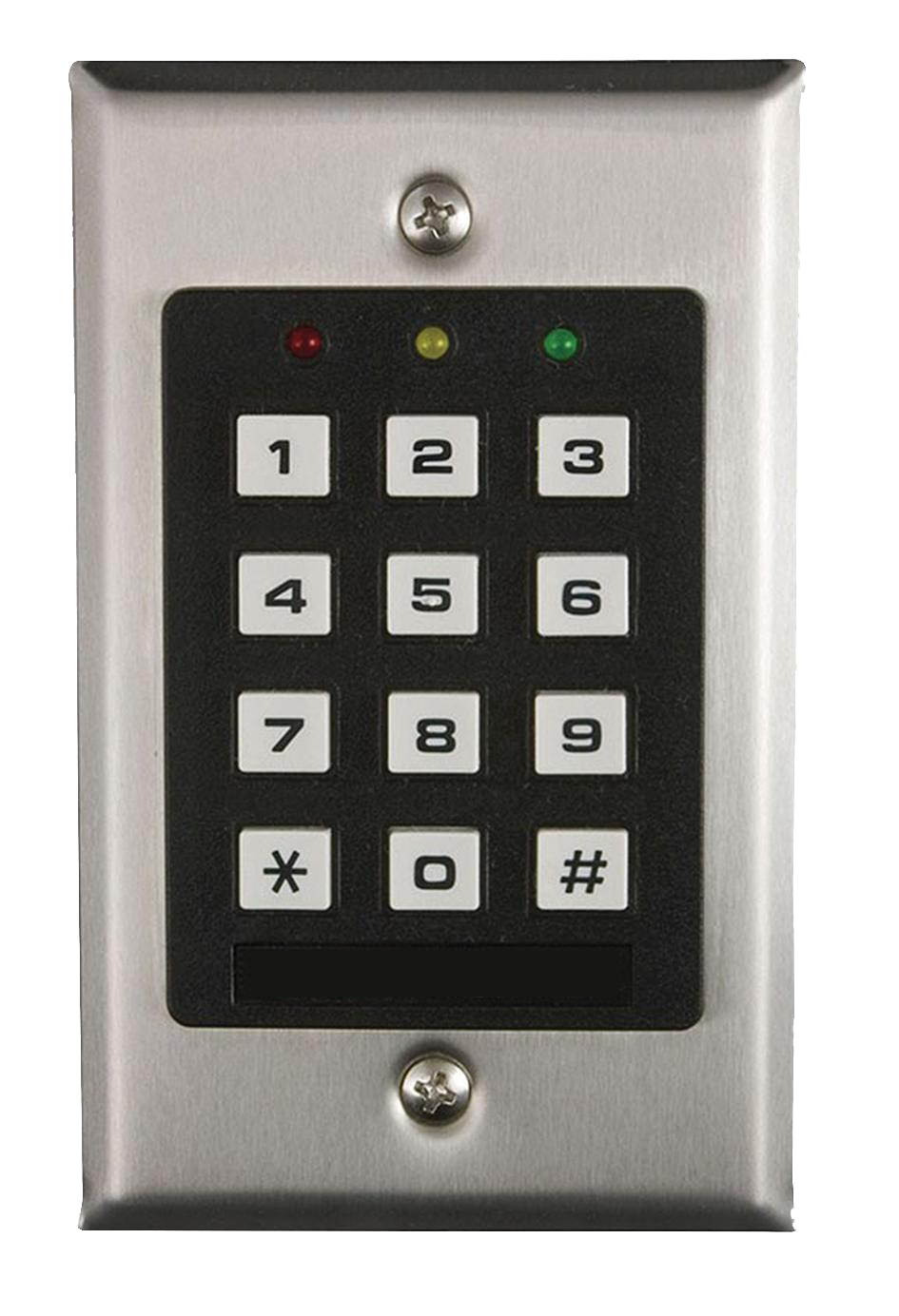

The keypad connects directly to our escape room controller to act as a passcode gate. The LEDs indicate key presses, correct code inputs as well as incorrect guesses. Entering a correct code activates the keypad's 5A relay which will trigger other devices, such as door lock, other electronics or even another prop controller!
The keypad offers a robust set of features, including many code options and length, as well as programmable "door-open" time.
Memory protected in case of power loss
Programming done at keypad, no need for
Program up to 1,000 user codes
Output "unlock time" specially
|Input Voltage||12-24V AC/DC|
|Code Length||4-8 digits|
|Stanby current drain||15mA at 12VDC|
|Maximum Relay Output||5A at 28VDC|
|Dimensions||4-5/8" x 2-7/8" x 1-7/8"|
|Mounting Style||Standard Single Gang|
